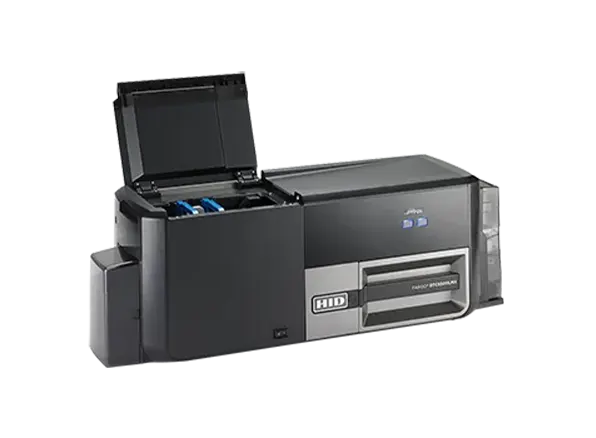

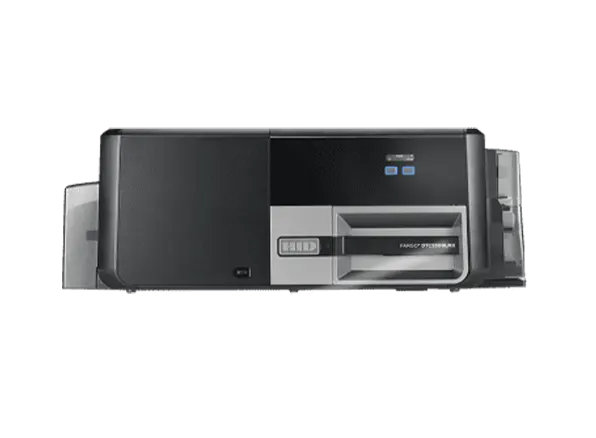

HID 5500LMX

High-definition retransfer card printer with waste-free lamination, ideal for secure, high-volume ID issuance.

  • Dual-sided retransfer printing with high-definition 600 dpi resolution
  • Print speed: Up to 600 monochrome cards/hour, 125 full-color laminated cards/hour
  • Waste-free dual-sided lamination for maximum durability and lower costs
  • Input hopper capacity: 200 cards | Output hopper: 100 cards
  • Supports PVC, composite, polycarbonate, smart, and proximity cards
  • Encoding options: Magnetic stripe, contact/contactless smart cards, proximity cards
  • Connectivity: USB, Ethernet (standard), optional Wi-Fi support
  • Full-color LCD touchscreen interface for easy operation
  • Advanced security: Physical locks and AES-256 data encryption
  • Ideal for government, healthcare, and enterprise-level secure ID programs
Product Consultation
Fast Delivery
Documentation & Integration Support
Overview
Specifications
Use Cases
Support

High-Definition Secure Card Printing

The HID FARGO 5500LMX is a next-generation retransfer ID card printer with dual-sided waste-free lamination, built for fast, secure, and high-volume issuance. It offers superior 600 dpi image quality and robust card durability, making it ideal for high-security environments such as government agencies, healthcare systems, and large enterprises.

High-Resolution Printing

600 dpi retransfer printing ensures sharp, edge-to-edge visuals with brilliant color and fine detail.

Waste-Free Lamination

Dual-sided lamination technology increases card longevity and reduces waste—no carrier film required.

Secure Encoding

Supports encoding for magnetic stripe, contact/contactless smart cards, and proximity credentials.

Technical Specifications

Printing

  • Technology: Retransfer (HDP) with optional lamination
  • Resolution: 600 dpi
  • Speed: Up to 600 cards/hour (monochrome), 125 cards/hour (YMCK + lamination)
  • Card Capacity: 200 input, 100 output
  • Lamination: Dual-sided, waste-free

Card Specifications

  • Card Types: PVC, composite, polycarbonate, smart, proximity cards
  • Card Size: CR80 (85.6 × 54 mm)
  • Card Thickness: 30 – 40 mil
  • Print Area: Full edge-to-edge

System

  • Connectivity: USB, Ethernet (Standard), Optional Wi-Fi
  • Display: Full-color LCD touchscreen
  • Power: 100–240V AC, 50/60 Hz
  • OS Support: Windows OS, FARGO Workbench

Common Use Cases

Government Credentials

National IDs, secure voting cards, and driver’s licenses with holographic overlays and encryption.

Enterprise ID Solutions

Customizable employee ID cards with multi-tech encoding for access control and secure printing.

Healthcare Access Card

Durable and tamper-proof patient or staff IDs with quick issuance in medical environments.

Support & Services

Expert Installation

On-site setup and technical configuration handled by certified engineers.

Ongoing Support

24/7 technical support, preventive maintenance, and operator training available nationwide.

Warranty & Repairs

Includes 3-year printer warranty, lifetime printhead coverage, and rapid turnaround on hardware repairs.
