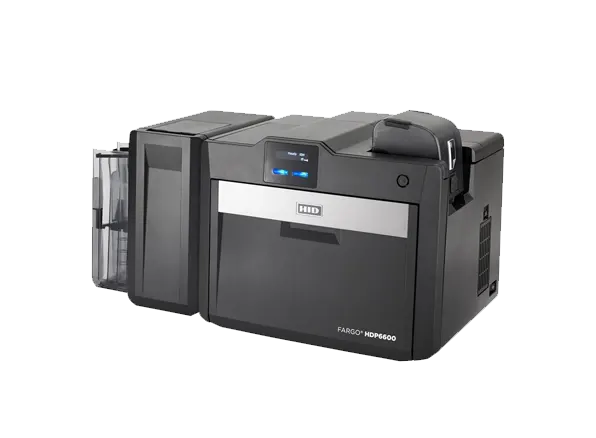

HID HDP 6600

The HID HDP6600 is an advanced retransfer ID card printer designed for high-speed, high-resolution card issuance. It combines exceptional image quality, energy efficiency, and modular upgrade options—making it ideal for government, corporate, and healthcare environments.

  • Retransfer printing with over-the-edge coverage
  • 600 dpi resolution for ultra-sharp images and microtext
  • Print speed: Up to 230 cards/hour (YMCK with transfer)
  • Supports single or dual-sided printing and lamination
  • 100-card input hopper and 200-card output capacity
  • Optional magnetic stripe, contact, and contactless smart card encoding
  • USB and Ethernet connectivity, with optional Wi-Fi
  • Energy-efficient with GreenCircle® certification
  • Compatible with Windows and Linux operating systems
Dedicated Sales Consultant
Volume-Based Discounts
Free Demo Unit on Request
Overview
Specifications
Use Cases
Support

Ultra-Fast, High-Definition Card Printing

The HID HDP6600 is a next-generation retransfer printer engineered for superior speed, security, and image quality. Designed for high-volume issuance, it supports advanced encoding, energy efficiency, and modular upgrades—perfect for secure ID programs across industries.

Lightning-Fast Output

Delivers up to 230 cards per hour using innovative transfer technology for unmatched productivity in busy environments.

Exceptional Print Quality

Prints with 600 dpi resolution for vibrant colors, crisp text, and high-precision microtext ideal for secure credentials.

GreenCircle® Certified

Energy-efficient design reduces operating costs and environmental impact without compromising performance.

Technical Specifications

Printing

  • Technology: Retransfer dye-sublimation
  • Resolution: 600 dpi
  • Print Speed: Up to 230 cards/hour (YMCK with transfer)
  • Print Type: Single- or dual-sided printing
  • Coverage: Over-the-edge, full card coverage

Card Compatibility

  • Card Types: PVC, composite PVC, polycarbonate
  • Card Size: CR80 (85.6 x 54 mm)
  • Card Thickness: 0.030" (0.76 mm) standard; supports 0.010" to 0.050"
  • Input Hopper: 100 cards
  • Output Hopper: 200 cards

Connectivity & System

  • Connectivity: USB 2.0, Ethernet (standard), optional Wi-Fi
  • Encoding: Magnetic stripe, contact, and contactless smart card (optional)
  • OS Support: Windows 7/8/10, Linux
  • Power: 100-240V AC, 50/60 Hz
  • Energy Rating: GreenCircle® Certified (low energy consumption)
  • Dimensions: 13.1" W x 12.5" H x 10.6" D (332 x 317 x 269 mm)
  • Weight: Approx. 16.5 lbs (7.5 kg)

Common Use Cases

Government ID Programs

Perfect for producing national IDs, driver’s licenses, and secure citizen credentials with high-resolution printing and built-in security features.

Corporate Security Badges

Ideal for high-volume issuance of employee access cards with magnetic stripe or smart card encoding for secure facility access.

Healthcare ID Cards

Used by hospitals and medical institutions to print durable staff and patient ID cards that include encoded medical and access information.

Support & Services

Professional Installation

Certified technicians provide on-site setup and integration with your systems to ensure smooth deployment.

24/7 Technical Support

Access expert assistance anytime for troubleshooting, driver support, and usage guidance.

Maintenance & Warranty

Includes standard warranty with options for extended coverage, regular checkups, and priority replacements.
