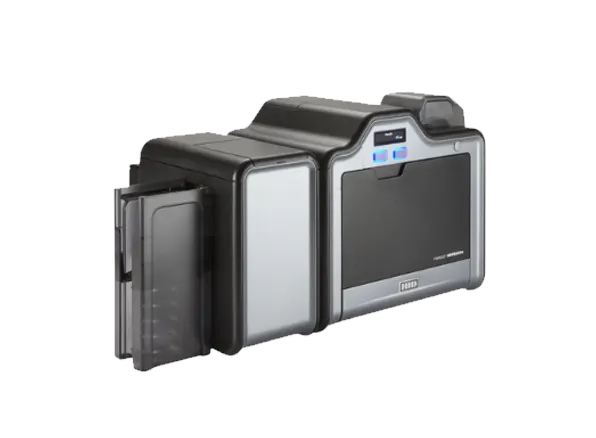

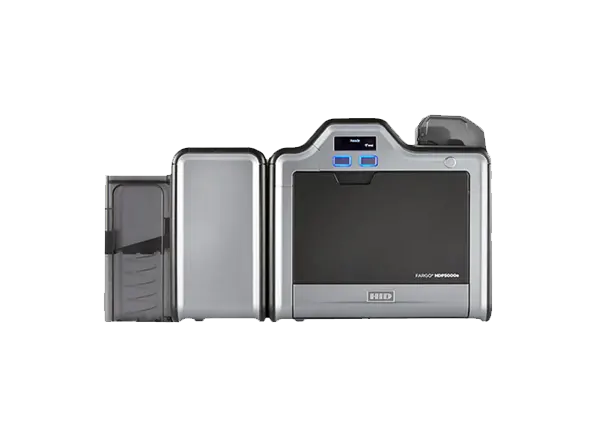

HID HDP5000e

The HID HDP5000e is a high-resolution retransfer card printer designed for secure, over-the-edge ID card printing. Ideal for high-volume, high-security environments, it offers exceptional durability, modular expandability, and superior print quality.

  • Retransfer printing technology with over-the-edge coverage
  • 600 dpi resolution for sharp text and detailed graphics
  • Single or dual-sided printing with optional lamination
  • Print speed: Up to 124 cards/hour (YMCK) or 100 cards/hour (YMCKK)
  • Input capacity: 100 cards | Output capacity: 200 cards
  • Optional magnetic stripe, contact and contactless smart card encoding
  • Connectivity: USB, Ethernet, optional Wi-Fi
  • Supports CR80 cards (PVC, composite, polycarbonate)
  • Dimensions: 12.5" H × 13.1" W × 10.6" D
  • OS Compatibility: Windows 7/8/10, Linux
Product Consultation
Bulk Purchase Discounts
Fast & Secure Delivery
Overview
Specifications
Use Cases
Support

High-Definition Secure Card Printing

The HID HDP5000e is a premium retransfer ID card printer engineered for organizations that demand superior image quality, enhanced security, and reliable performance. Perfect for government agencies, corporations, and educational institutions, it ensures professional-grade ID issuance with every print.

Over-the-Edge Quality

Retransfer printing delivers full card coverage with no white borders—ideal for sharp, professional designs.

Modular & Scalable

Flexible upgrade options including dual-sided printing, lamination, and advanced encoding modules

Enterprise-Grade Security

Built-in security features such as AES-256 encryption and secure boot to protect sensitive card data.

Technical Specifications

Printing

  • Technology: Retransfer dye-sublimation (YMCK, YMCKK, YMCKH)
  • Resolution: 600 dpi
  • Speed: Up to 124 cards/hour (YMCK), 100 cards/hour (YMCKK)
  • Print Type: Single or dual-sided printing
  • Edge Coverage: Over-the-edge, full card coverage

Card Handling

  • Card Types: PVC, composite PVC, polycarbonate
  • Card Size: CR80 (85.6 × 54 mm)
  • Card Thickness: 0.030" (0.76 mm) standard; supports 0.010" to 0.050"
  • Input Hopper: 100 cards
  • Output Hopper: 200 cards

Connectivity & System

  • Connectivity: USB 2.0, Ethernet (standard), Optional Wi-Fi
  • Encoding: Magnetic stripe, contact, and contactless smart card (optional)
  • OS Support: Windows 7/8/10, Linux
  • Power Supply: 100-240V AC, 50/60 Hz
  • Dimensions: 12.5" H × 13.1" W × 10.6" D
  • Weight: Approx. 6.8 kg (15 lbs)

Common Use Cases

Government ID Programs

Perfect for issuing secure national IDs, driver's licenses, and voter registration cards with advanced encoding and visual security features.

Corporate Employee Badges

Provides high-resolution photo ID badges with smart card or magnetic stripe integration for access control and attendance tracking.

University & Campus Cards

Issues multi-function student IDs with printing and encoding for payments, library access, and secure dorm entry.

Support & Services

Expert Installation

On-site or remote setup by certified technicians, including printer configuration and software integration.

Dedicated Technical Support

Access to 24/7 support via phone, chat, or email for troubleshooting, driver updates, and usage guidance.

Maintenance & Warranty

Includes manufacturer warranty and optional extended service plans with preventive maintenance coverage.
