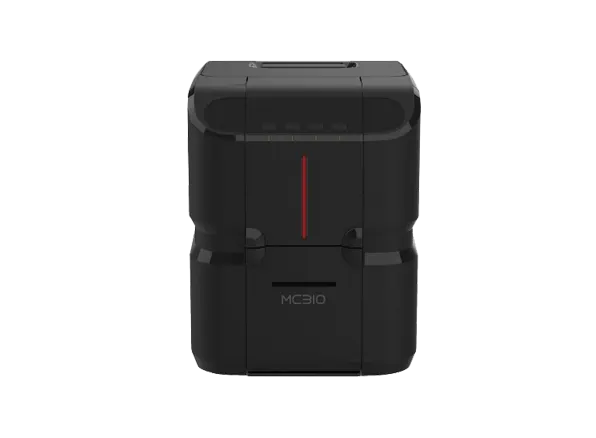

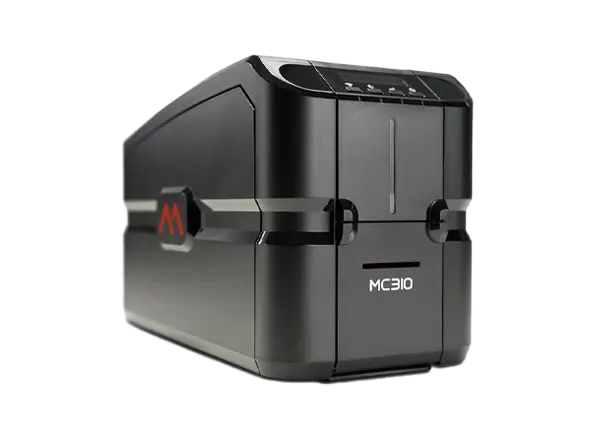

Matica MC310

The Matica MC310 is a premium direct-to-card printer designed for high-performance card issuance. It offers full modularity, fast dual-sided printing, and advanced encoding options—ideal for enterprise, government, and secure credential environments.

  • Single or dual-sided dye-sublimation printing
  • 300 dpi resolution with edge-to-edge coverage
  • Print speed: Up to 180 cards/hour (YMCKO)
  • Input capacity: 100 cards | Output capacity: 30 cards
  • USB 2.0, Ethernet, and optional Wi-Fi connectivity
  • Optional magnetic stripe, contact & contactless smart card encoding
  • Supports CR80 cards, PVC, and composite PVC materials
  • Card thickness: 0.25 mm to 1.25 mm
  • Dimensions: 343 x 200 x 180 mm
  • Weight: Approx. 6.8 kg
  • OS compatibility: Windows 7/8/10/11 (32 & 64 bit)
Pre-Sales Consultation
Bulk Order Discounts
Fast & Secure Delivery
Overview
Specifications
Use Cases
Support

High-End Direct-to-Card Printing Solution

The Matica MC310 is a robust and modular card printer designed for demanding environments that require high-quality, secure ID card issuance. With upgradeable features and fast performance, it serves enterprises, universities, and government sectors.

High-Speed Printing

Delivers up to 180 full-color cards per hour with edge-to-edge coverage and consistent quality.

Modular & Upgradeable

Easily add modules for dual-sided printing, smart card encoding, or Wi-Fi based on future needs.

Secure Encoding

Supports magnetic stripe, contact, and contactless smart cards for secure credential personalization.

Technical Specifications

Printing

  • Technology: Dye-sublimation / Resin thermal transfer
  • Resolution: 300 dpi (edge-to-edge)
  • Speed: Up to 180 cards/hour (YMCKO)
  • Print Mode: Single-sided (standard), dual-sided (optional)

Card Handling

  • Card Size: CR80 (85.6 × 54 mm)
  • Card Thickness: 0.25 mm to 1.25 mm
  • Materials Supported: PVC, Composite PVC
  • Capacity: 100-card input hopper, 30-card output hopper

System

  • Connectivity: USB 2.0, Ethernet (standard), Wi-Fi (optional)
  • Encoding: Magnetic stripe, contact & contactless smart cards (optional)
  • Dimensions: 343 × 200 × 180 mm
  • Weight: Approx. 6.8 kg
  • OS Support: Windows 7/8/10/11 (32 & 64-bit)

Common Use Cases

Corporate Access Cards

Issue secure employee ID badges with smart card and magnetic stripe encoding for authentication and access control.

Student & Staff IDs

Used in schools and universities for campus access, attendance tracking, and library systems integration.

Government Credentials

Supports production of driver’s licenses, national IDs, and service permits with high-security encoding options.

Support & Services

Installation Assistance

Certified technicians provide on-site or remote setup, calibration, and software installation support.

Technical Support

Access to responsive email and phone support for troubleshooting, firmware upgrades, and compatibility issues.

Warranty & Maintenance

Includes standard manufacturer warranty with optional extended service plans and preventive maintenance programs.
