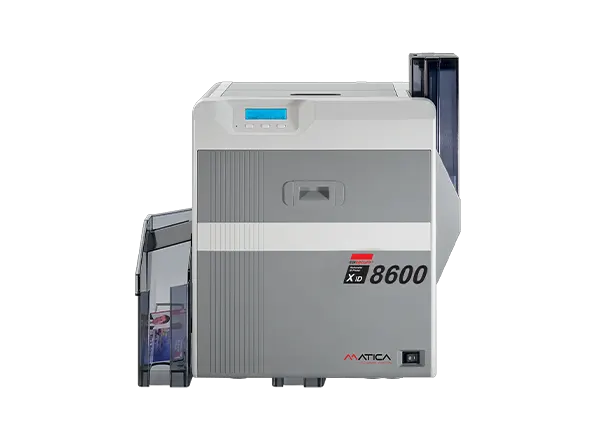

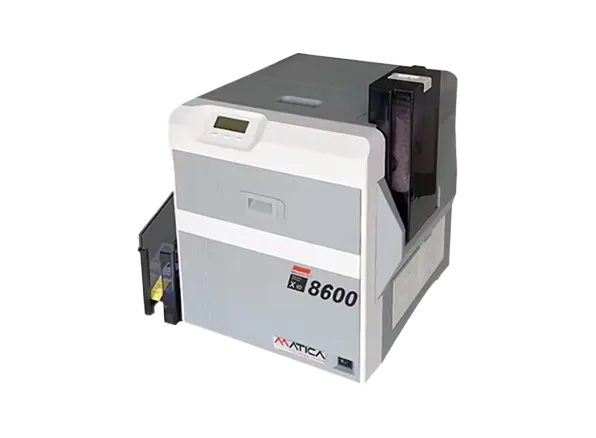

MATICA XID 8600

The Matica XID8600 is a high-resolution retransfer card printer engineered for ultra-fine image detail and security. With 600 dpi printing, it is ideal for government and enterprise use cases requiring superior print quality and precision.

  • 600 dpi ultra-high-resolution retransfer printing
  • Dual-sided printing capability (optional flipper module)
  • Print speed: Up to 120 cards/hour (YMCK single-sided)
  • Supports magnetic stripe, contact, and contactless smart card encoding
  • 200-card input hopper | 100-card output hopper
  • USB 2.0 and Ethernet connectivity (standard)
  • Compatible with PVC, PET, and polycarbonate cards (0.25–1.02 mm)
  • Windows drivers and Matica software suite included
Expert Product Consultation
Customized Pricing & Offers
Fast & Secure Delivery
Overview
Specifications
Use Cases
Support

Ultra-High-Resolution Secure Card Printing

The Matica XID8600 is a premium retransfer card printer built for detailed, high-security ID card issuance. Its 600 dpi print resolution, modular design, and advanced encoding options make it the perfect choice for demanding applications such as national IDs, corporate security, and smart credential programs.

600 dpi Print Quality

Delivers ultra-sharp text and image clarity, ideal for microtext, barcodes, and secure visual elements.

Modular Flexibility

Offers optional dual-sided printing, smart card encoding, and inline lamination for future-ready scalability.

Enhanced Security

Supports multiple encoding methods and secure retransfer technology to protect against forgery or tampering.

Technical Specifications

Printing

  • Technology: Retransfer dye-sublimation
  • Resolution: 600 dpi ultra-high definition
  • Print Speed: Up to 120 cards/hour (YMCK single-sided)
  • Print Mode: Single or dual-sided (optional flipper module)

Card Handling

  • Card Format: CR80 (85.6 × 54 mm)
  • Card Thickness: 0.25 to 1.02 mm
  • Card Types: PVC, PET, polycarbonate
  • Input Hopper: 200 cards
  • Output Hopper: 100 cards

Connectivity & System

  • Interfaces: USB 2.0, Ethernet (standard)
  • Encoding Options: Magnetic stripe, contact, and contactless smart cards (optional)
  • Power Supply: 100–240V AC, 50/60 Hz
  • Dimensions: 343 × 322 × 360 mm (W × H × D)
  • Weight: Approx. 12.5 kg
  • Supported OS: Windows 7 and above (via Matica driver)

Common Use Cases

Government ID Programs

Ideal for issuing secure national IDs, driver’s licenses, and voter cards requiring microtext and watermark-level precision.

Corporate Security Cards

Used to produce employee badges with high-resolution images and secure access credentials for sensitive environments.

University & Campus Cards

Prints multi-functional student IDs with smart chip and magnetic stripe options for access control, payment, and library use.

Support & Services

Professional Installation

Includes onsite printer setup, driver configuration, and integration with encoding modules by certified technicians.

Technical Assistance

Access expert support for troubleshooting, firmware upgrades, and software compatibility across all systems.

Maintenance & Warranty

Extended warranty options and preventive maintenance plans to ensure continuous and secure card issuance.
